Điều khiển PID mô hình con lắc ngược

%Single Link Inverted Pendulum Control
clc;
clear all;
close all
global A B C D;

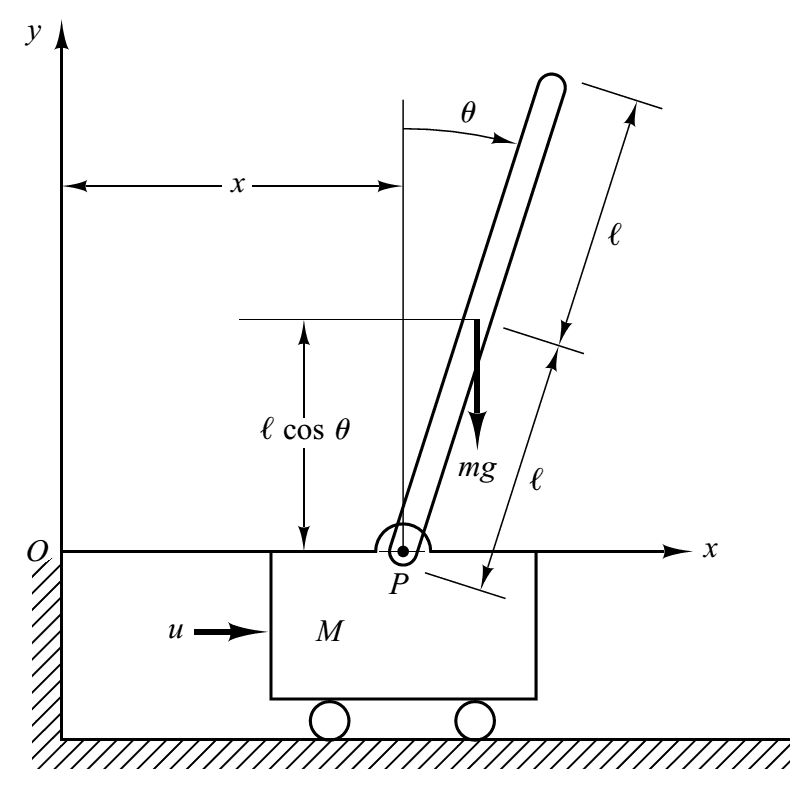

%Single Link Inverted Pendulum Parameters
g=9.8;
M=0.5;
m=0.2;
L=0.3;
% Fc=0.0005;
% Fp=0.000002;
I=1/12*m*L^2;
l=1/2*L;
t1=m*(M+m)*g*l/[(M+m)*I+M*m*l^2];
t2=-m^2*g*l^2/[(m+M)*I+M*m*l^2];
t3=-m*l/[(M+m)*I+M*m*l^2];
t4=(I+m*l^2)/[(m+M)*I+M*m*l^2];
A=[0,1,0,0;
   t1,0,0,0;
   0,0,0,1;
   t2,0,0,0];
B=[0;t3;0;t4];
C=[1,0,0,0;
   0,0,1,0];
D=[0;0];

Kp = [10 1];
Kd = [1 1];
Ki = [1 1];
desired = [0 1];% theta theta_dot x x_dot

init=[0.2,0.1,0,0];
dt=0.01;
N = 2000;
% pre-assign all the arrays to optimize simulation time
Prop = zeros(N+1,2);
Der = zeros(N+1,2);
Int = zeros(N+1,2);
I = zeros(N+1,2);
PID = zeros(N+1,1);
FeedBack = zeros(N+1,2);
Output = zeros(N+1,4);
Error = zeros(N+1,2);
time = zeros(N+1,1);
Output(1,:) = init;
for k=1:N
    time(k+1)=k*dt;
    Tspan=[0 dt];
    control_input=PID(k);
    [t,x]=ode45('pendulum',Tspan,Output(k,:),[],control_input);
    FeedBack(k+1,:)=x(end,[1,3]);
    Output(k+1,:) = x(end,:);
    Error(k+1,:) = desired - FeedBack(k+1,:); % error entering the PID controller
    Prop(k+1,:) = Error(k+1,:);% error of proportional term
    Der(k+1,:)  = (Error(k+1,:) - Error(k,:))/dt; % derivative of the error
    Int(k+1,:)  = (Error(k+1,:) + Error(k,:))*dt/2; % integration of the error
    I(k+1,:)    = sum(Int); % the sum of the integration of the error
    PID(k+1)  = -Kp*Prop(k+1,:)' - Ki*I(k+1,:)'- Kd*Der(k+1,:)'; % the three PID terms
    % Limit control signal
    if PID(k+1)>=10
        PID(k+1)=10;
    elseif PID(k+1)<=-10
        PID(k+1)=-10;
    end

end

% Reference = desired.*ones(N+1,4);
Reference = zeros(N+1,2);
Reference(:,1) = desired(1)*ones(N+1,1);
Reference(:,2) = desired(2)*ones(N+1,1);

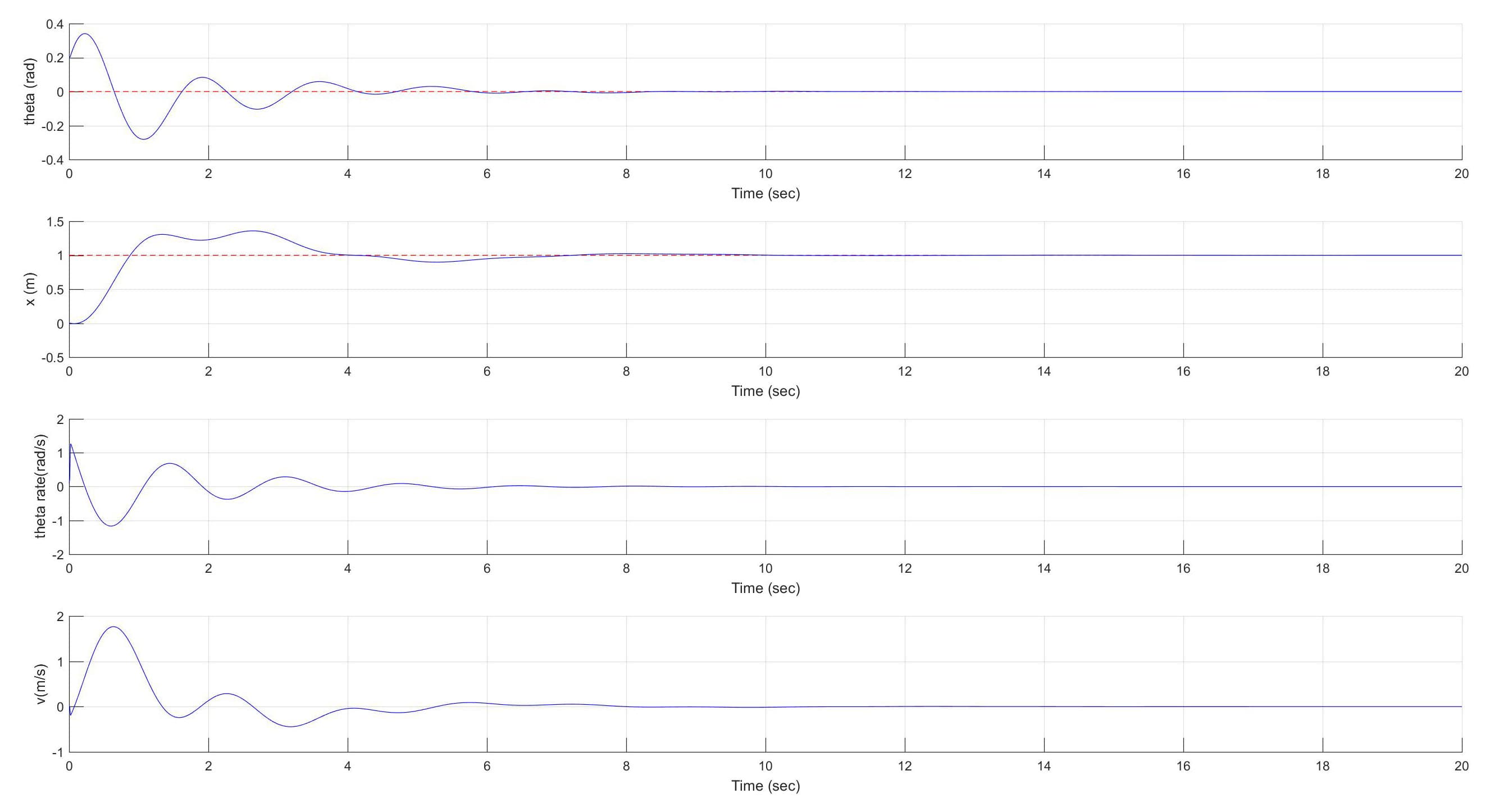

figure(1)
subplot(4,1,1)
hold on
plot(time,Reference(:,1),'--r');
plot(time,Output(:,1),'b');
grid on
xlabel('Time (sec)');
ylabel('theta (rad)');

subplot(4,1,2)
hold on
plot(time,Reference(:,2),'--r');
plot(time,Output(:,3),'b');
grid on
xlabel('Time (sec)');
ylabel('x (m)');

subplot(4,1,3)
hold on
plot(time,Output(:,2),'b');
grid on
xlabel('Time (sec)');
ylabel('theta rate(rad/s)');
subplot(4,1,4)
hold on
plot(time,Output(:,4),'b');
grid on
xlabel('Time (sec)');
ylabel('v(m/s)');

function dx=pendulum(t,x,flag,control_input)
global A B C D;
u=control_input;
dx=zeros(4,1);
%State equation for one link inverted pendulum
dx=A*x+B*u;
end
